Snug Water Underfloor Heating

Powerful, efficient systems you can use anywhere

Water systems, often called wet systems, are very versatile. From a single kitchen to a whole hotel, if you’re looking for great efficiency, they’re the best choice. They can be tuned to give out exactly the heat each room needs, and no more, creating comfortable warmth and cutting energy bills.

To get the best results from a water underfloor heating system, you’ll need to choose the right type for your particular needs. Here’s our quick guide to your options, for more detail or further queries, please don't hesitate to contact the Snug technical support team on 01772 761333 or email

Screed systems

There’s no doubt about it, screed systems give you the best possible output. They’re also the cheapest option and the most efficient. The drawback is, they need space. Typically, they need around 200mm because they rely on heating a thermal mass. There are three different screed systems to choose from

  • Staples: the cheapest way to lay this kind of system on a budget.
  • Clip rails: easier, faster installation, great for big, open rooms.
  • Castellation mats: the most expensive screed option, but the fastest. They’re also ideal if you’re laying a water system on a solid concrete floor without installation.

Snug Underfloor Heating Staple Systems

Snug Underfloor Heating Clip Rail Systems

Snug Underfloor Heating Castellation Mat Systems

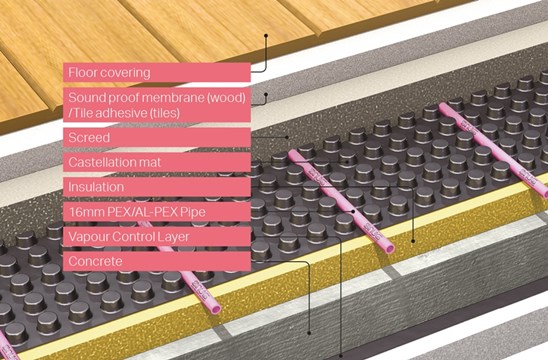

Snug Underfloor Heating Screed Systems Castellation Mat

Low-profile systems

These are great when you’re retrofitting underfloor heating or working with low ceiling heights. They’re also perfect when you’re fitting a water system upstairs because they only need 18mm of space. Plus, they’re easy to install, even if you’re doing the job on your own. Adding our Snug Support low-profile ends makes installation much faster and easier too.

Read all about the Snug Low Profile System in our blog article: The most versatile end-plate on the market.

Snug Underfloor Heating Low-profile Systems

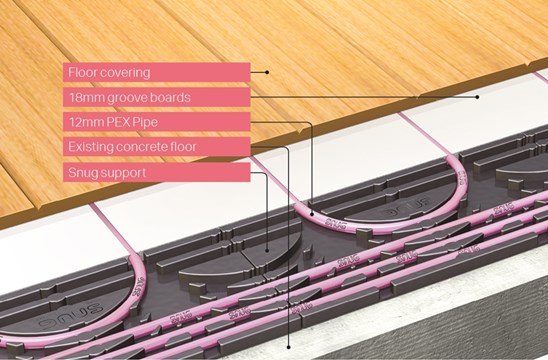

Snug Underfloor Heating Low Profile System Diagram

Suspended floor systems

These systems are designed specifically for upper floors and there are two main options to choose from:

  • Fit from above heat plates: fits neatly between standard 400mm joists and are easy to install.
  • Fit from below heat plates: ideal if you’re renovating downstairs and want to add underfloor heating upstairs without lifting the floor. They fit neatly between any size of joist and is quick and easy to install.

Snug Underfloor Heating Suspended Heat Plate Systems

Snug Underfloor Heating Fit From Below Systems

Fit from above heat plates

Fit from below heat plates

Why choose Snug?

At Snug we really know our underfloor heating. We’re experienced technical experts who love helping you get the most from our systems – finding just the right one for your project, creating a customised design and supporting you through installation and beyond.

We’ll also give you:

  • Accurate, efficient, customisable systems that help reduce energy bills.
  • A full quote within 24 hours of receiving your project details.
  • Advice on choosing, installing and programming the right system for your needs.
  • A free custom design service, from pipe and board layouts to flow rates and full electrical schematics.
  • Expert help tackling your specific challenges, from limited budget to limited space or time.
  • A full warranty on every system.
  • Straight-talking, expert support, whether you’re a homeowner or a heating professional.

To find out more, contact us today on 01772 761333 or email
